Product Details:
Payment & Shipping Terms:
|
| Product Name: | Full HD PTZ Camera Warning Light Bar LED Strobe Lightbar With Siren Speaker | Speaker: | 100W |
|---|---|---|---|
| Alarm: | 100W | Power Supply: | DC12V / DC24V Vehicle Power |
| Lightbar Dimension: | 1200*600*200mm | Light Bar Control: | RS485 Wired Control Or Wireless Tablet Remote Control |
| Flash Mode: | Contain 10 Flash Modes | Camera Type: | IP PTZ Camera 1920*1080P 20x Optical Zoom |
| Highlight: | Police Warning PTZ Surveillance Camera,Strobe Lightbar PTZ Surveillance Camera,30FPS IP PTZ Camera |
||

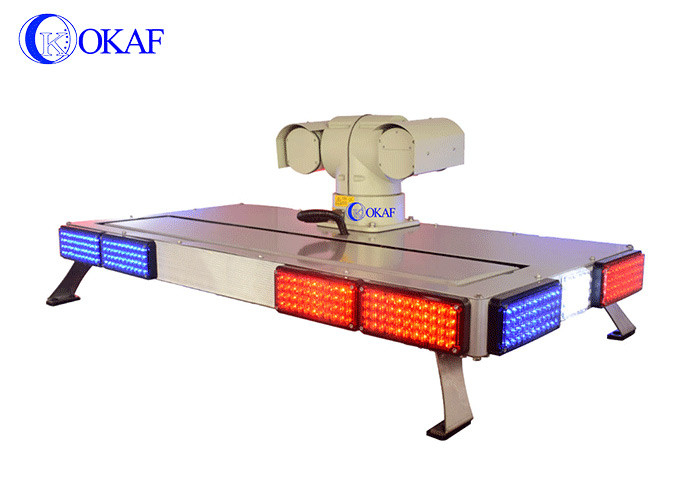

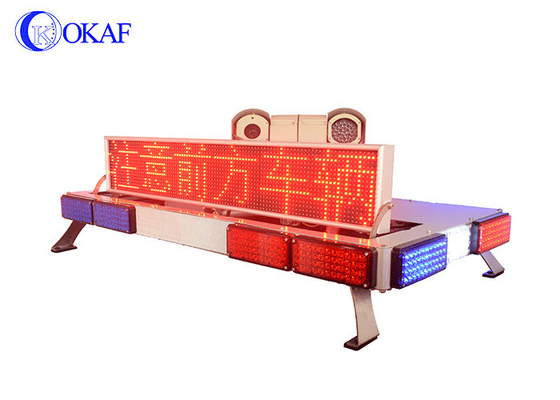

High Definition Full HD PTZ Camera Warning Light Bar LED Strobe Lightbar with Siren Speaker
Specification
1. Aluminum cover, red, blue, amber or green led color is available.
2. Easy maintenance and module replacement
3. With or without speaker inside, it's by your choice
4. Imported capacitors inside, controlled by compositive micro-chip
5. Water proof, shock proof, dust proof
6. With Siren Speaker, well warning function.
7. Applicable to car, ambulance,Urban management vehicle, tow trucks, plow trucks, roadside traffic management ect.
8. Anti shock full HD high definition Vehicle mounted PTZ camera.
Techncial data of vehicle mounted ptz camera
| Model | OK-CT100GR-20IP |
| Signal | IP network ptz camera |
| Pan preset Speed | 100°/S(Manual control 0~100°/S) |
| Tilt preset Speed | 60°/S (Manual control 0~60°/S) |
| Pan range (Horizontal) | 360° continuously |
| Tilt range( vertical) | -90°~+90° |
| Motor | Stepping motor |
| Preset position | 256 preset positions |
| Control way | RS485 control |
| Baud rate | Baud rate from 2400Bps to 19200Bps Optional |
| Control protocol | Pelco-D / Pelco-P |
| Night Vision | 120 meter |
| Docking chipest | Hikvision,Sony,Samsung,Hitachi,and other brands HD Camera chipest |
| Max image size | 1920*1080 |
| Video output | BNC port output |
| Frame rate | 30FPS |
| Dual stream | Support |
| Sensor | 1/2.8'' Exmor CMOS |
| Pixel | 2.0 Megapixel |
|
Minimum illumination |
0.095 Lux |
| NVR Compatible | Stand ONVIF protocol,support secondary development |
| Power supply | DC10.5V~DC16V(6A) |
| Weight | 7.5 kg |
| IP rate | IP66 waterproof |
Technical data of led Light Bar with Siren
| Flash modes | Contain 10 flash modes. It provides additional warning alarm |
| Light Source | Ultra bright LED light for the brightest, fullest warning signal even in the brightest conditions. |
| Usage | Low Profile Mounting Bracket can be adjusted on the light bar to allow for positioning the feet to best match the contour of the vehicle roof |
| Light color | Red orange blue white four optional |
| Voltage | DC12V/ 24V |
| The speaker power | 100W |
| Alarm power | 100W |
| Overall dimensions | 1200*600*200mm |
| Net weight | 15 kg |
| Control way | RS485 Wired control or control by tablet. |
| The environment temperature | 40℃—+55℃ |
